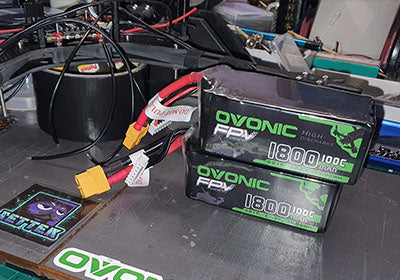

Ovonic 100C 6S 1800mAh 22.2V LiPo Battery with XT60 Plug offers high power output with its 100C discharge rate and 6S (22.2V), making it ideal for FPV racing drones, freestyle drones, and RC quad that require rapid bursts of energy. With an optimal 1800mAh capacity, it balances power and weight, providing extended flight times without compromising performance, perfect for 5-6 inch FPV drones like the iFlight Nazgul5 V2 and iFlight Titan DC5. And compatible with a wide range of models, including FPV racing drones, freestyle drones, RC helicopters (e.g., Align T-Rex 600), ensuring versatile compatibility.

Key Features:

1. High Discharge Rate: With a 100C discharge rate, this battery delivers extremely high power output, making it ideal for FPV racing drones, freestyle drones, and RC quad that require rapid bursts of energy during aggressive maneuvers or high-speed flight.

2. Optimal Capacity for FPV Drones: The 1800mAh capacity strikes the perfect balance between power and weight, offering extended flight times without compromising on performance. Perfect for 5-6 inch FPV drones, like the iFlight Nazgul5 V2 or iFlight Titan DC5, and freestyle drones like the Xhover Explorer V3.

3. Excellent configuration: With 6S (22.2V) configuration provides higher voltage to power larger motors, delivering improved speed and power for aggressive flying styles, whether in racing, freestyle, or aerobatic RC helicopters like the SAB Goblin 500/570 or Align T-Rex 500X.

4. Versatile Compatibility with Multiple Models: It is suitable for a wide range of models, including FPV racing drones (e.g., TBS Source One), freestyle drones, RC helicopters (e.g., Align T-Rex 600), and RC planes, ensuring wide compatibility with many popular brands and types of high-performance models.

5. Reliable and Secure Connection: With XT60 plug ensures a secure and reliable connection, capable of handling high current loads, and is widely used in FPV racing drones, RC helicopters, and other high-power RC applications. This robust connection type minimizes voltage drops and improves overall performance during demanding flights.

Spec of Ovonic 100C 6s 1800mah battery:

• Brand: Ovonic
• Chemistry: Li-Polymer(LiPo)
• Configuration: 6S1P
• Voltage(V): 22.2V
• Capacity(mAh): 1800mAh
• Discharge Rate: 100C
• Max Burst Discharge Rate: 200C
• Length(dev.5mm) : 88mm
• Width(dev.2mm) : 33mm
• Height(dev.2mm) : 46mm
• Net Weight(dev.20g): 278g
• Connector Type: XT60 Plug
• Balance Connector Type : JST-XHR-7P

Compatible with:

Ovonic 100C 1800mah 6S lipo battery is suited to kx017001a and Align Trex 600, iFlight Titan DC5, and other more.

5-inch to 6-inch FPV Racing Drones

• iFlight Nazgul5 V2
• TBS Source One (5-inch or 6-inch builds)
• Geprc Cinebot 30

Freestyle Drones

• DJI FPV DroneArmattan Chameleon or Rooster (5-inch to 6-inch)
• Xhover Explorer V3 (freestyle style)

RC Helicopters

• SAB Goblin 500 or 570
• Align T-Rex 500X
• RC Planes (High-performance)

• E-flite F-15 Strike Eagle (large EDF jets)
• HobbyKing B-25 Mitchell (for high-speed flight)

Package Content：

• 1×Ovonic 100C 22.2V lipo 6s 1800mah battery with XT60 Plug
• 1×User Manual

Please Notice:

1. For the RC battery, only if the voltage and the plug match, then it will fit.
2. Please stop charging immediately when the cell voltage has been charged to 4.2V (Normal cell voltage is between 3.7V~4.2V).
3. To double make sure safe, please have a check first whether the battery surface is alright when you get it and whether the voltage is normal before using.
4. If the new battery won’t hold a full charge or loss the charge very quickly in a short time, please use Balance Charger to charge and recycle several times first.
